Sublimation Solutions Wholesale - Polytech
Product details of the sublimation solutions
Product Introduction
Polytech sublimation solutions is manufactured under the guidance of skilled professionals using optimum grade material. The strong functionality of the product can be proved by the increasing sales. Polytech(Shenzhen) Inc. puts great importance to quality of sublimation solutions and pack them with solid wooden pallets.

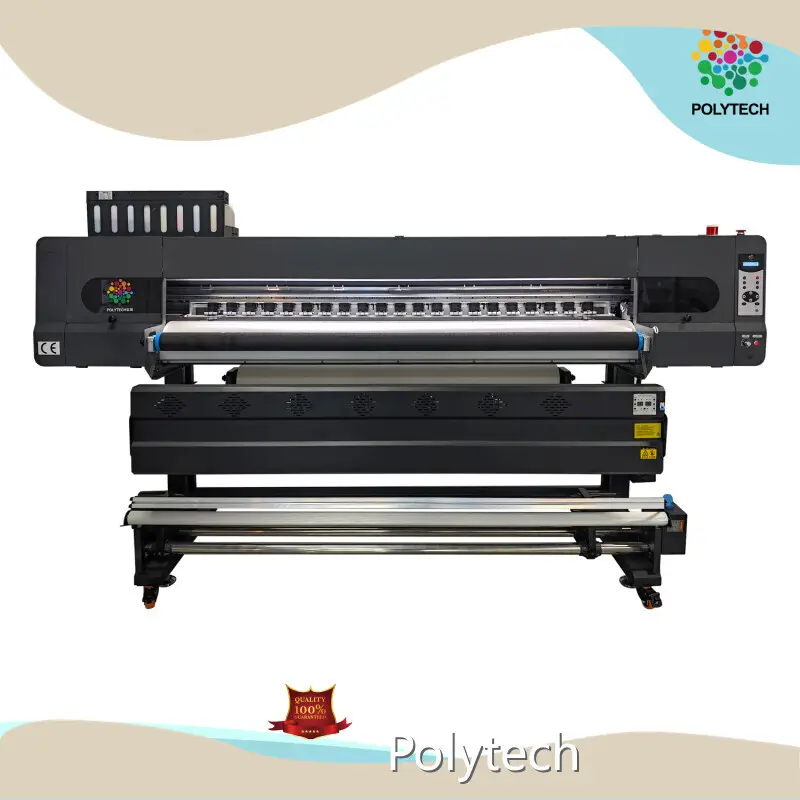

Machine parameters
we have the best quality
| Specifications | Parameters |
| Model | I3200 H4 |
| Printhead and Quantity | 13200-A1 4pcs |
| Printing width | 1.9M |
| Media Type | Thermal transfer paper |
| Heating system | Auto constant temperature drying system |
| RIP Software | RIIN, Main Top , Photoprint (Optional) |
| Temperature/Humidity | Temperature: 20-26°C，Humidity: 45-70% |
| Power | 430W External drying: 2400W |
| Machine Dimension | L3160 * W960mm * H1860mm |
| Package Dimension | L3530 * W760 * H855mm |
| Net Weight | 300KG |
| Gross Weight | 380KG |
I3200
Ray AC servo motor
We have adopted the high-power AC servo motor and re-equipped it with a high-resolution 18-bit or 23-bit optical encoder as the position feedback unit. The motor has the characteristics of high-stability, high precision, high dynamic response, and high protection level; Ensuring continuous and stable operation of the sprinkler trolley.
Ink deficiency alarm
The whole system is equipped with an ink shortage alarm as standard to prevent nozzle damage and waste of consumables caused by continuous printing due to ink shortage.
Anti collision sensor
Anti-collision sensors are installed on both sides of the nozzle trolley to ensure that the nozzle will not be damaged due to the teaching of the printing film, and it will also prevent people from bumping. The safety of the machine is greatly improved.
Standard 1000m take-up/feeder svstemoptional 10000m take-up/feeder system
Standard 1000m take-up/feeder svstemoptional 10000m take-up/feeder system
Printer with excellent take-up/feeder system, get the perfect printing and achieve high-precision printing.
Double-layer drying system
fast speed printing cooperates with a double-layer drying system guaranteeing fast printing and fast take-up/feeder while it will affect the printing effect because the ink is not dry.
New generation design suction platform
A new generation of precision machining design suction platform and the accuracy is controlled within 6S; Supplemented by the patented air suction platform, the scanning and paper feeding are better coordinated. and the printing is not arched
High power AC servo motor
Vertical take-up and feeding system: using all servo motors with intelligence speed adjustment and buffer control: Multi rollers system making paper take-up much smoother under high-speed printing.
